As invented in 1992 by The Welding Institute, Friction Stir Welding FSW has been a revolutionary innovation in the welding industry especially for industries which use Aluminum parts. Launched into the public domain in 2015, FSW has become available to any manufacturer interested in using it as a versatile and strong procedure that allows joining metal components, including small parts and large structures. The controlled, solid-state process of FSW is particularly well-suited for applications in the transport, aerospace and power generation industries where dimensional accuracy and reduced weight of assembly is critical.
More on Friction Stir Welding here : https://stirweld.com/en/home-2/
Principle of Friction Stir Welding

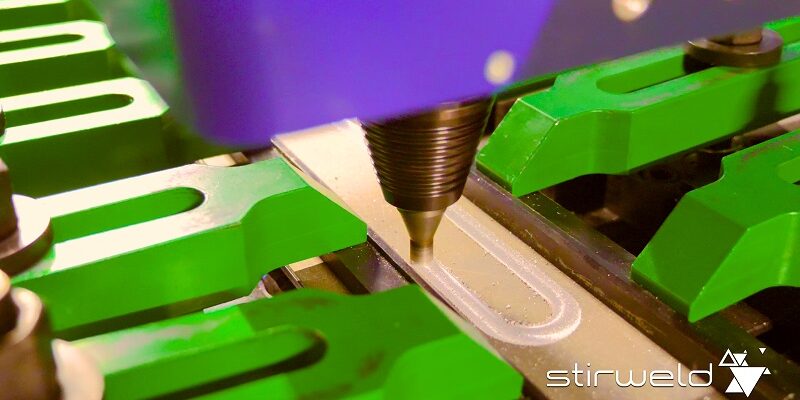

FSW works through impacting and pivoting of a tool around a joint between two neighboring planes. This process creates some amount of heat that melts the jointing metals slightly but doesn’t bring the temperature to reaching any melting point. The controlled process here, with heat only raised to levels of around 60 % to 80% of that required to melt the materials, produces a strong bond that is also clear of defects. The technique is famous for fine surface finish and blockage free and no cracking fact which makes it useful in some specialist parts such as aerospace aircraft body and car body panels.
1. High Weld Quality and Mechanical Properties
FSW consistently delivers high-strength welds with superior mechanical properties, including enhanced tensile strength, fatigue resistance, and durability. Its solid-state process prevents common issues like porosity, solidification defects, and cracking. This makes FSW particularly advantageous for high-strength aluminum alloys like the 2000, 6000, and 7000 series, which are difficult to weld using traditional methods due to their susceptibility to solidification cracking.
2. Lightweight Construction for High-Performance Sectors
FSW’s ability to join high-strength aluminum without compromising integrity has gained attention in industries where weight reduction is crucial. In aerospace, for example, FSW can replace a significant portion of rivets in fuselage construction, cutting aircraft weight by up to 60%. Eliminating rivets not only decreases weight but also reduces potential points of corrosion, prolonging component lifespan—a critical factor in applications like bridges and ship hulls.
3. Aesthetically Pleasing and Precise Welds
The FSW process provides clean, smooth welds that require minimal post-processing. Thanks to the precise movement and pressure control, FSW results in uniform weld seams that are visually appealing and dimensionally stable. This aesthetic advantage minimizes the need for additional machining, enhancing productivity and reducing costs. The technique’s high consistency also accelerates the inspection phase, saving valuable time in production cycles.
4. Energy Efficiency and Environmental Benefits
FSW consumes significantly less energy than traditional fusion welding techniques, which require extremely high temperatures. This lower energy consumption translates to reduced production costs and a lower carbon footprint, supporting manufacturers’ environmental goals. Additionally, FSW’s clean process generates no toxic fumes, radiation, or molten spatter, eliminating the need for shielding gases or chemical treatments. This eco-friendly aspect aligns FSW with modern sustainable manufacturing practices.
5. Enhanced Safety for Operators
With FSW, worker safety improves considerably. The absence of harmful byproducts, such as radiation, fumes, and spatter, removes many health risks associated with welding. Workers are exposed to lower temperatures, which further enhances workplace comfort. Unlike traditional methods, FSW requires only basic personal protective equipment, such as safety glasses, making it a safer, cleaner process overall.
6. Increased Productivity and Automation
FSW is easily automated and can be seamlessly integrated into CNC machining centers. This capability allows manufacturers to perform welding and final machining in a single machine setup, enhancing efficiency and reducing the likelihood of human error. This automation potential is crucial for high-volume production environments, particularly in the aluminum industry, where demand for lightweight, high-strength materials is growing. Companies such as Tesla, Honda, and BRP have adopted FSW for applications like electric vehicle battery casings and radiator assemblies.
7. Versatile Applications Across Materials
FSW is highly versatile, compatible with various aluminum alloys, sheet metals, and even some cast materials. It has proven effective with dissimilar materials, allowing manufacturers to combine different metals for optimized performance. For example, FSW efficiently welds high-strength aluminum extrusions, addressing a broad range of welding needs in sectors like rail, marine, and defense.
8. Potential for Weight Reduction in Aerospace and Automotive
The transportation sector is particularly well-suited to benefit from FSW’s weight-saving potential. SpaceX, for instance, leverages FSW for the aluminum tanks in its Falcon 9 rocket, achieving both structural integrity and weight reduction. In electric vehicles, manufacturers use FSW for battery packs and chassis components to maximize efficiency and extend driving range. The elimination of filler materials further reduces component weight, which is a major advantage in fuel efficiency.
9. Increased Product Longevity
FSW enhances the longevity of assembled products by creating a robust, continuous joint that is resistant to environmental degradation. Unlike bolted or riveted joints, which introduce stress concentrations and corrosion points, FSW’s seamless bond increases durability, which is valuable in applications subject to extreme conditions, such as shipbuilding and infrastructure projects.
10. Cost Savings
FSW’s combination of energy efficiency, elimination of filler materials, minimal waste, and reduced labor costs results in substantial cost savings for manufacturers. With fewer post-weld processing needs and a highly repeatable process, companies benefit from lower production costs and higher output. These savings make FSW an attractive option for industries aiming to improve profitability while maintaining quality.
Friction Stir Welding is a relatively new process in welding technology, and the technology brings limitless benefits to ensure modern production requirements. Precise weld quality, non-hazardous nature of the product, security measures, and relatively affordable prices that distinguish it make it a perfect solution for any company that looks for performance along with sustainability.
Used in aerospace, automotive and energy industries among others, FSW goes on to offer new opportunities to manufacturing industries seeking for high strength to weight ratio, high durability with high production efficiency rate.
